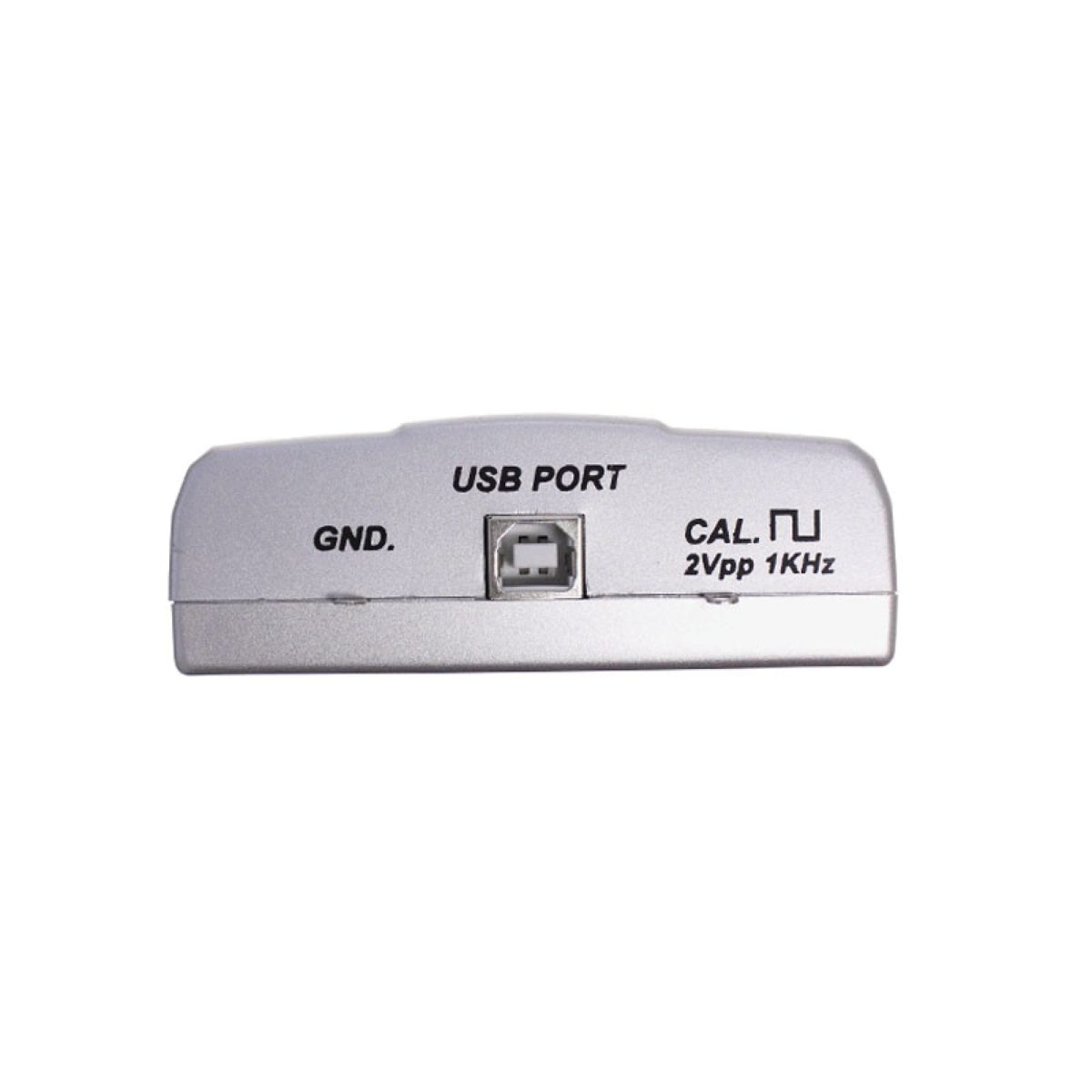

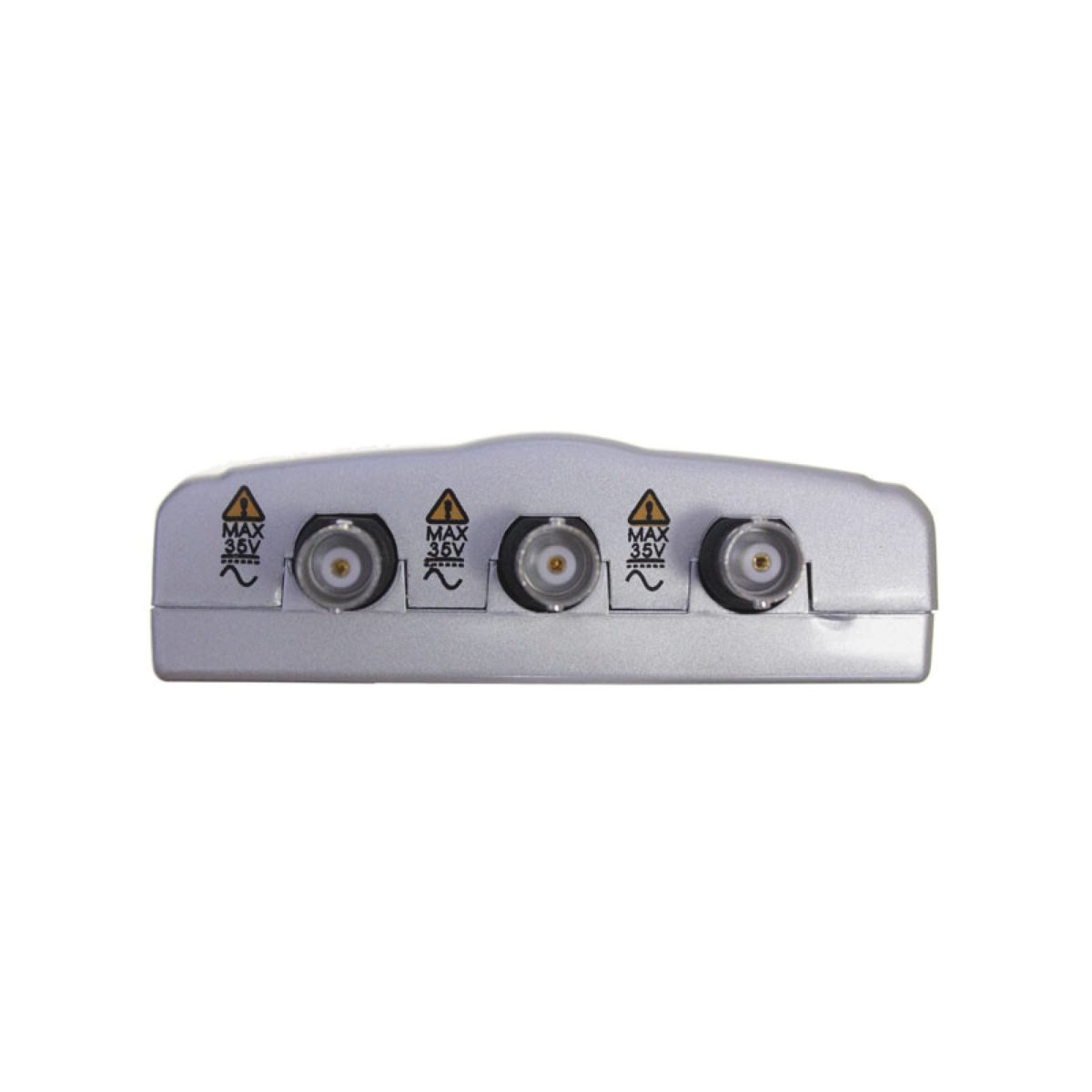

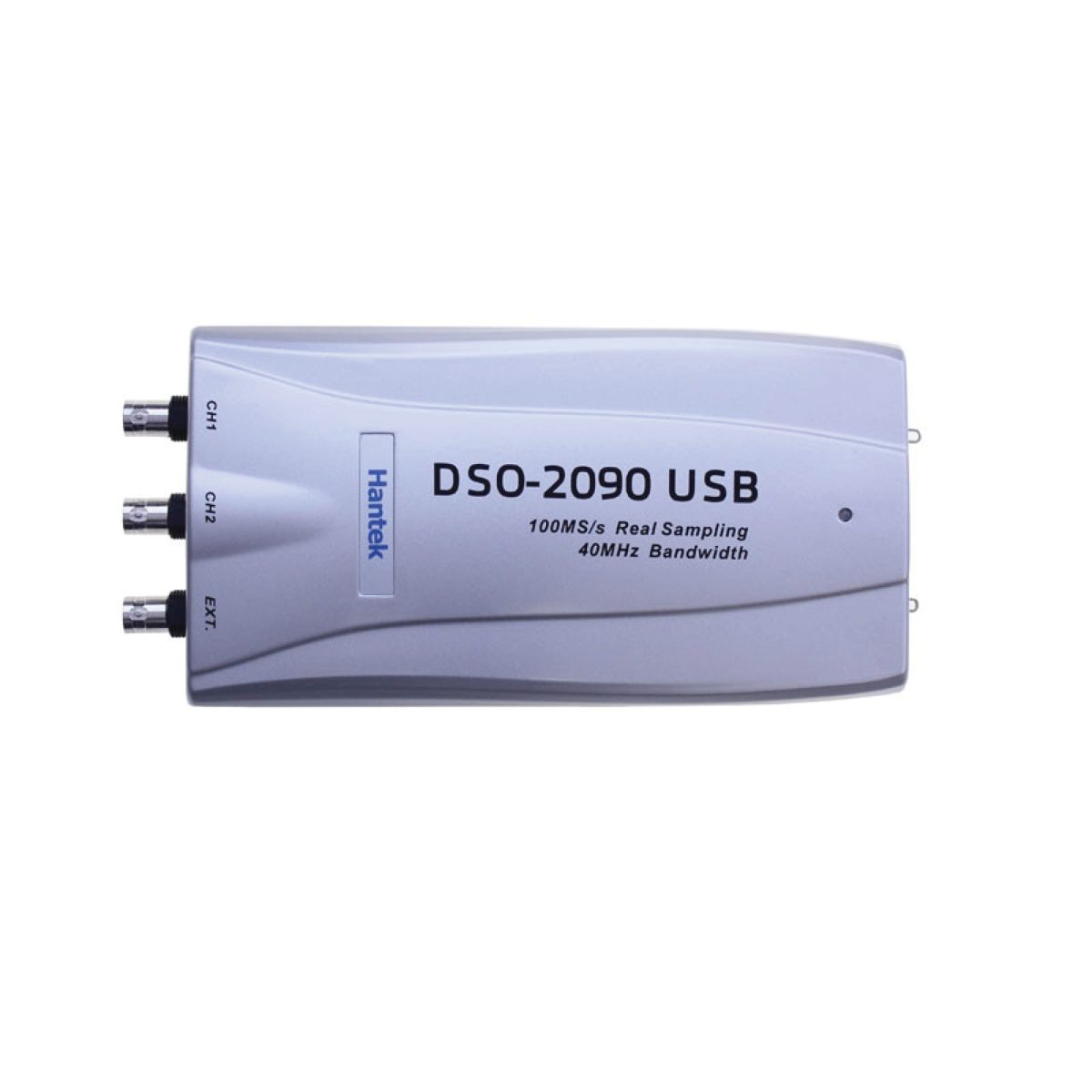

Oscilloscope Portable DSO 2090
Caractéristiques :
- Bande passante : 2 x 20 MHz
- Sensibilite : 5 mV a
- 5 V/div.
- Sequences : 1 – 2 et 5
- Modes de fonctionnement : CH1, CH2, Add, Dual.
- Impedance d’entree : 1 MΩ / 25 pF
- Tension d’entree : 300 Vcc
- Mode XY : oui
- Bande passante en voie X : 500 kHz
- Vitesse de balayage : 200 ms a 100 ns/div
- Expansion : x5
- Déclenchement : AUTO , NORM , TV-V , TV-H
- Source : INT, CH2, Line, EXT
- Couplage : AC
- Test de composants : non
- Ecran : 8 x 10 cm
- Modulation Z : oui
- Alimentation : 110/220 V (50/60 Hz)
- Dimensions : 375 x 335 x 140 mm
- Masse : 7,3 kg.
Hardware Specifications:
- Channels: 2
- Impedance: 1MΩ 25pF
- Coupling: AC/DC/GND
- Vertical resolution: 8Bit
- Gain range: 10mV-5V, 9Steps
- DC accuracy: ±3%
- Timebase range: 4ns-1h, 38 Steps
- Vertical adjustable: Yes
- Input protection: Diode clamping
- X-Y: Yes
- Autoset: Yes (30Hz to 40MHz)
- EXT. input: Yes
- Trigger Mode: Auto, Normal and Single
- Trigger Slope: +/-
- Trigger level adjustable: Yes
- Trigger Type: Rising edge, falling edge
- Trigger Source: CH1, CH2, EXT
- Pre/Post trigger: 0-100%
- Buffer size: 10K-32KB/Channel
- Shot bandwidth: DC to 40MHz
- Max. Sample rate: 100MS/s
- Sampling selection: Yes
- Waveform Display: port/line, waveform average, persistence, intensity
- Network: Open/Close
- Vertical mode: CH1, CH2, Dual, ADD
- Cursor measurement: Yes
